Compression valve works with a coupling nut that screws onto the valve body and a brass compression sleeve that fits inside of it. The brass sleeve is compressed snugly against the copper pipe when the nut is screwed onto the valve, forming a watertight seal. Fixture shut-off valves deteriorate over time.
Do Compression Valves Work Well?
They are well-liked by DIYers because they provide a secure, no-heat method of joining copper pipe. Compression connectors are necessary to make a variety of valves, tees, connectors, and utilities watertight and secure.
Installer’s Guide To Compression Connectors:
Compression fits are widely used in the plumbing industry. Plumberparts has produced a short instructional video that you may see below.
For compression ■■■■■■■■ to function, an “olive” must be compressed between two tapered surfaces and the pipe itself. The body of the connection (whether a valve, connection, or any other form) and the nut are the two surfaces. The nut is tightened with a spanner and a pair of grips. As a result, the olive is compressed and bit into the pipe.
Pipeslices:
If the pipe is tidy and cut correctly, compression ■■■■■■■■ function effectively. Pipeslices are a valuable tool for this task and work well in confined locations.
The compression valve is put together by sliding on the nut and olive at both ends of the pipe after it has been cleaned and trimmed. Then, firmly hold the compression-■■■■■■ body with a set of grips while tightening the nut with a spanner.
It’s common knowledge in the profession to avoid bending the olive or connection by not overtightening a compression connection. However, this will leave you with more threads in case of a leak. Typically, after hand tightening, a nut requires one complete turn.
People frequently wrap PTFE around to ensure a watertight seal on a compression-■■■■■■■ olive.
Summary:
Compression connections are incredibly trustworthy. These connections are a secure option because they are impervious to leaks and versatile enough to be applied in various high-pressure scenarios.
A CompressioShutoffff Valve Replacement Procedure:
For copper plumbing lines, there are various fixture shutoffs valves. Some feature smooth sockets that are heated-soldered onto the water pipe by a torch on specific models. Others are screwed into threaded adapters permanently attached to the water pipe using solder.
A grip-fit connection is used by a more modern form shutoff valve (often known by the joint brand name, SharkBite). Howevershutoffff, valves that use compression ■■■■■■■■ are among the simplest to install.
Many different piping systems use compression ■■■■■■■■■ such as unions, elbows, transitions, and shutoff valves. They function through a connection nut that screws onto the valve body and a brass compression sleeve that fits inside. The brass sleeve is compressed snugly against the copper pipe when the nut is screwed onto the valve, forming a watertight seal.
Fixturshutoffff valves deteriorate over time. Fortunately, removing and replacing a compression-type valve is a simple task. It’s a good idea to check the function of the fixture shutoff valves and replace them if necessary whenever you replace a sink or toilet components. Thanks to this quick procedure, the valves will function whenever you need them.
WARNING
Compressioshutoffff valves are rarely used by licensed plumbers because they can ■■■■ off under pressure, potentially causing extensive water damage. Compression valves are helpful for do-it-yourself repairs, although most experts prefer to solder valves instead.
A safe to supply water to ice machines, toilets, and faucets with SharkBite quarter-turn ball valves with compression connections. The ferrule and compression nut is utilized to secure the valve to the pipe and tighten them with a wrench. Following that, join the supply line to the valve. Your fixtures can be easily and without maintenance turned off with the quarter turn shut off.
|Tools/Equipements|Material|
|—|—|
|channel-lock pliers, two|Modern compression shutoff valve|
|a tube cutter||
|Puller for compression sleeves||
Instructions:
Turn the water off.
The main shutoff valve typically found close to the water meter, is where you should turn off the water supply to the house in the first step. (If only a hot-sid shutoff valve needs to be replaced, you could turn off the hot water at the water heater.)
Replacing a faucet’s shutoff valves at once is the best practice. However, the other valve may fail soon if the first one has failed.
When removing a fixture shutoff valve, it’s a good idea to have a small bowl, sponge, or towels available because there might be some leftover water in the pipe.
Old Valve to be Removed:
We must remove the flexible supply tube from the shutoff valve by removing the mounting nut and holding it to the exit ■■■■■■.

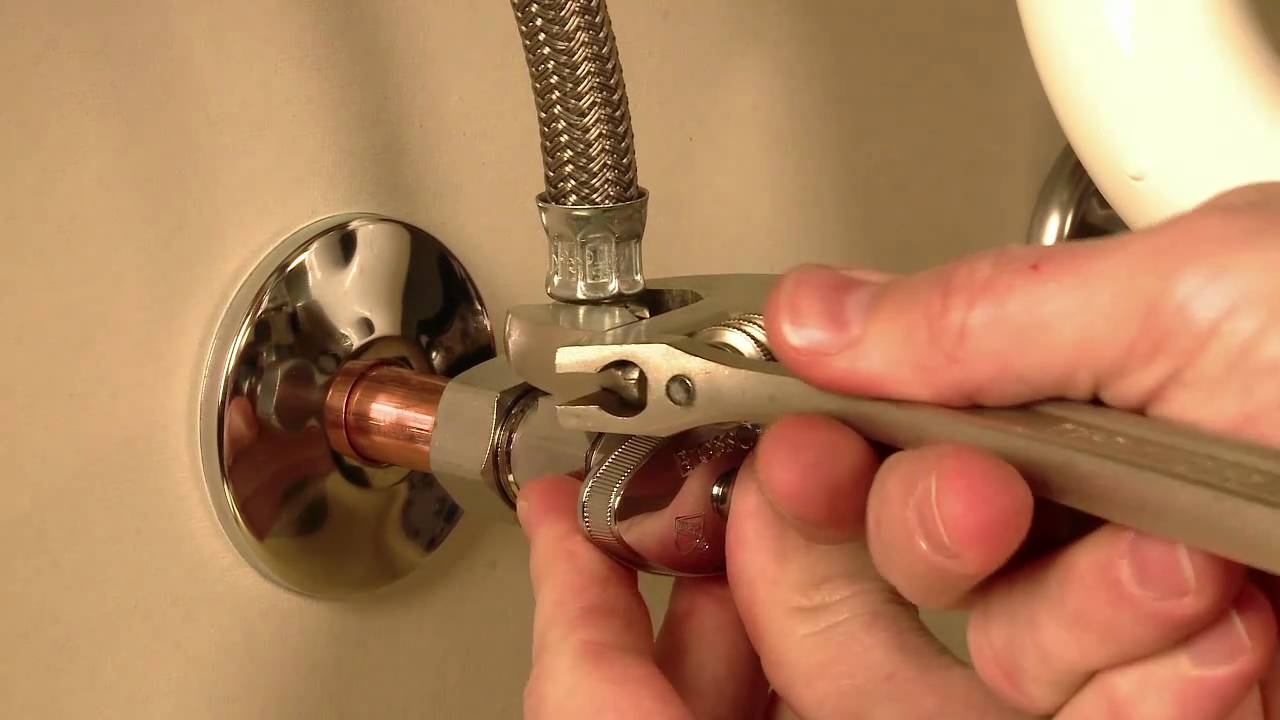

The compression nut that fits around the water supply pipe can be disconnected by grasping the valve with one pair of channel-lock pliers and rotating the compression nut with a different pair of pliers.
Slide the brass compression ring and nut off the pipe after removing the valve body from the water pipe’s end. Although we might utilize the compression nut and ring from the old valve with the new one, it is preferable to take them out and install the new ones that came with the new valve.
It may be nearly impossible to remove the compression sleeve because it has been forced up against the pipe and, ideally, modified the size of the pipe. (The sleeve shouldn’t come out if the compression valve is placed correctly.) So instead, use a tubing cutter to trim the copper and install the replacement compression valve on a new pipe segment if the sleeve won’t come off with pliers.
Tip
A compression sleeve puller might be helpful if the compression sleeve appears to be detachable but won’t budge with pliers. Although it is rarely utilized, we can use this specialized tool can be used to try to remove compression sleeves.
Putting in the New Valve:
After removing the old valve, sleeve, and compression nut:
- Wipe the pipe off with a rag.
- After the new compression nut, place the compression sleeve on the pipe.
- Carefully slide these components down the pipe to create room for the valve.
Once the water pipe is wholly seated inside the valve’s socket, slip the valve onto the pipe.
Thread the compression nut onto the valve body after positioning the compression ring and nut against the valve’s bottom. By hand, tighten the nut as far as it will go. With one pair of pliers holding the valve, use the other to tighten the compression nut. With pliers, crank the nut one more quarter turn to complete the tightening process.
The flexible water supply line should be reattached to the valve outlet. Complete hand tightening followed by a quarter turn with pliers.
Put the water on and look for leaks:
Restart the water supply at the main shut-off valve with the shut-off valve fully closed. Verify the valve’s compression ■■■■■■■ for Leakage. While checking for leaks at the compression and flex tube ■■■■■■■■ gradually open the shutoff valve. If you notice any water leaking, tighten the nuts a little bit more to stop it.
It is always a good idea to return a few times in the hours following installation to ensure no seeping water. Compression valves can occasionally have slow leaks.
If you discover a leak, turn off the water, let the pressure out of the line, tighten the compression nut a bit more, and give it another look.
Offers|Innovation/Development|Benefits|
|—|—|—|
|Superior-quality compressor valves|When working together with a reliable partner for the duration of the life cycle, new ideas have the highest chance of success.|Accelerated return on investment|
|Top valve services|We can create cutting-edge materials and technologies thanks to our cutting-edge research and development labs.|Decreased energy use|
|Enhancing reciprocating compressors’ efficiency.| To satisfy the ever-changing market demands, we create exceptional solutions.|Support the compressor’s startup by offering assistance.|
Frequently Asked Questions:
There are some frequently asked questions by different people related to the topic " Compression valve " are as follows:
Q1: What about compression valves?
You might wonder how dependable PVC compression ■■■■■■■■ are if you’ve just made a short repair with one or if your plumber utilized one in your plumbing system. The solution is straightforward: compression ■■■■■■■■ are incredibly dependable.
Q2: How does a ball valve for compression operate?
For compression to function, an “olive” must be compressed between two tapered surfaces and the pipe itself. The connectors’ body (whether it be a valve, connection, or another sort) and the nut are the two surfaces. The nut is tightened with a spanner and a pair of grips.
Q3: Compressioshutoffff valves: how long do they last?
roughly 8–10 years
Every homeowner must know that most homes have compression valves that aren’t built to last. Usually, the valve’s compression component stops working after 8 to 10 years. However, This typically breaks down due to wear and tear or just getting old from sitting about the house for so long.
Q4: How is a compression valve opened?
Holding the valve body with an adjustable or open-end wrench or slip-joint pliers will allow you to remove a compression-style valve. With a second wrench, grasp the compression nut and crank it counterclockwise to release it. After that, remove the valve from the copper tube.
Q5: What is the price of replacing the shutoff valve?
However, replacing a [water](https://howtodiscuss.com/t/main-water-shut-off-valve-types/140192shutoffff valve costs typically between $375 and $600, but the cost may be as high as $800 or more depending on where the valve is, what kind it is, and whether you use a professional.
Q6: What causes my compression valve to leak?
A compression ■■■■■■■■■ ability to seal can potentially be compromised by excessive tightening. Only turn your tool to tighten the compression ■■■■■■■ until you encounter resistance. It would help if you didn’t spin it more than a half-turn after that. By doing this, you can be confident that you’ll stop your compression ■■■■■■■ from leaking.
Q7:How frequently must shutoff valves be changed?
On average, most household water shutoff valves have a lifespan of 10 to 15 years. Therefore, to prevent problems shortly, we advise investing in shutoff valves if you’re buying a home that is 10 or 15 years old.
Q8: Why do water cutoff valves malfunction?
The main culprit’s shutoff valve failures (seizing) are worn-out internal parts like rubber washers. Many appliances and plumbing parts in your home need a shutoff valve to quickly and comfortably switch off the water in the event of a plumbing emergency.
Q9: Can you fix a water shutoff valve?
Mineral buildup and grit can clog main water shutoff valves, resulting in gradual leaks. However, it’s a safe and straightforward repair if the proper tools and techniques are used.
Q10: Do compression ■■■■■■■■ eventually leak?
They are frequently employed to join fixtures and appliances that may later require replacement. Although compression ■■■■■■■■ are practical, improper installation could cause them to leak. However, there are procedures you can do to remedy a leak if one does occur.
Q11: Can compression connectors malfunction?
Compression connectors, unlike threaded ■■■■■■■■■ can seal well but still move out of place due to stresses on a pipe. In this instance, the plumbers used compression fits but neglected to secure the repaired pipe.
Q12: How do I stop the leak in my compression connector?
To crimp the ferrule onto the pipe, forcefully tighten compression connectors with two wrenches (Photo 3). Make sure the pipe or tube enters the ■■■■■■■ directly as well. Leakage will result from misalignment. Try tightening the nut an extra one-quarter turn if the connector leaks after you turn on the water.
Conclusion:
What is a compression valve? They function by way of a connection nut that screws onto the valve body and a brass compression sleeve that fits inside of it. The brass sleeve is compressed snugly against the copper pipe when the nut is screwed onto the valve, forming a watertight seal. Fixturshutoffff valves deteriorate over time.
